OPTIONAL EXTRAS
Battery pack" (8 AA Batteries Required)
Ceiling Hanging Kit
Power cable as standard will come from the bottom centre or bottom right. Signs with over 6m of LED neon Strips may require more than one power feed. These will connect to a single dimmer remote receiver and single power supply. Please contact us or add a note at checkout to request alternative power cable positioning.
How to hang
your sign
1. Mark out & Drill Holes
Take your sign and place it flat up against the wall (it will be easier to have a friend help you out with this part). Use a pen to mark the wall where the predrilled holes are on your signs acrylic backing.
2. Drill 'n' Screw
Drill pilot holes exactly on the points you marked out in Step 1 and insert the rawl plugs. Unscrew the top of the studs from the bottom. Put the screw through the bottom half of the stud and screw into the rawl plug with a screwdriver. Repeat this for all holes.
3. Attach the Bolts
Hold you sign up so that the predrilled holes are matched up with the bottom part of the wall studs. Screw the top half of the wall studs through the predrilled holes into the bottom half.
4. Repeat and Tighten
Your sign should now be sandwiched between the top and the bottom half of the studs. Repeat this for all of the remaining studs. Try not to over tighten them as this can damage the acrylic backing.
5. Plug it in!
You can now plug the dimmer remote receiver into the clear power cable on one end, and the black mains power cable into the other. Once this is done, simply plug in the mains power supply (or battery pack) and you are good to go!

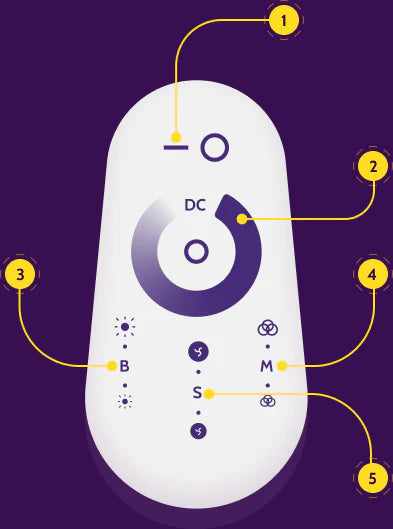

Dimmer Remote requires 2 x AAA Batteries (Not Included):
1
On/Off Selection
Turn your sign on and off
2
Brightness Dial / RGB Colour Selection
Single Colour Signs - Select the brightness of your sign
RGB Signs - Select the colour of your sign
3
Brightness Selection
Select the brightness of your sign
4
Mode Selection
Single Colour Signs - Change between modes such
as flashing and pulsing.
RGB Colour Signs - Change between modes such
as auto colour rotation.
5
Mode Speed Selection
Changes the speed of the selected mode.
Dimmer remotes may vary on extra large signs
